Under Counter


cold water
sparkling water
hot water
ambient water
safety lock
Energy Saving
Leak Detector
UV Sterilization
Filtration System


Hot Water in One Touch


Hot water tank to deliver 95oC hot water after each reheating.


The setting button on the panel is for changing the maximum heating
temperature of hot water according to the altitude of the location to prevent over-boiling.


H: Maximum temperature (98o/96o celsius)
M: -2 degree from maximum temperature
L: -5 degree from maximum temperature


Quick power off button: shuts off the faucet function to prevent water from flowing while cleaning

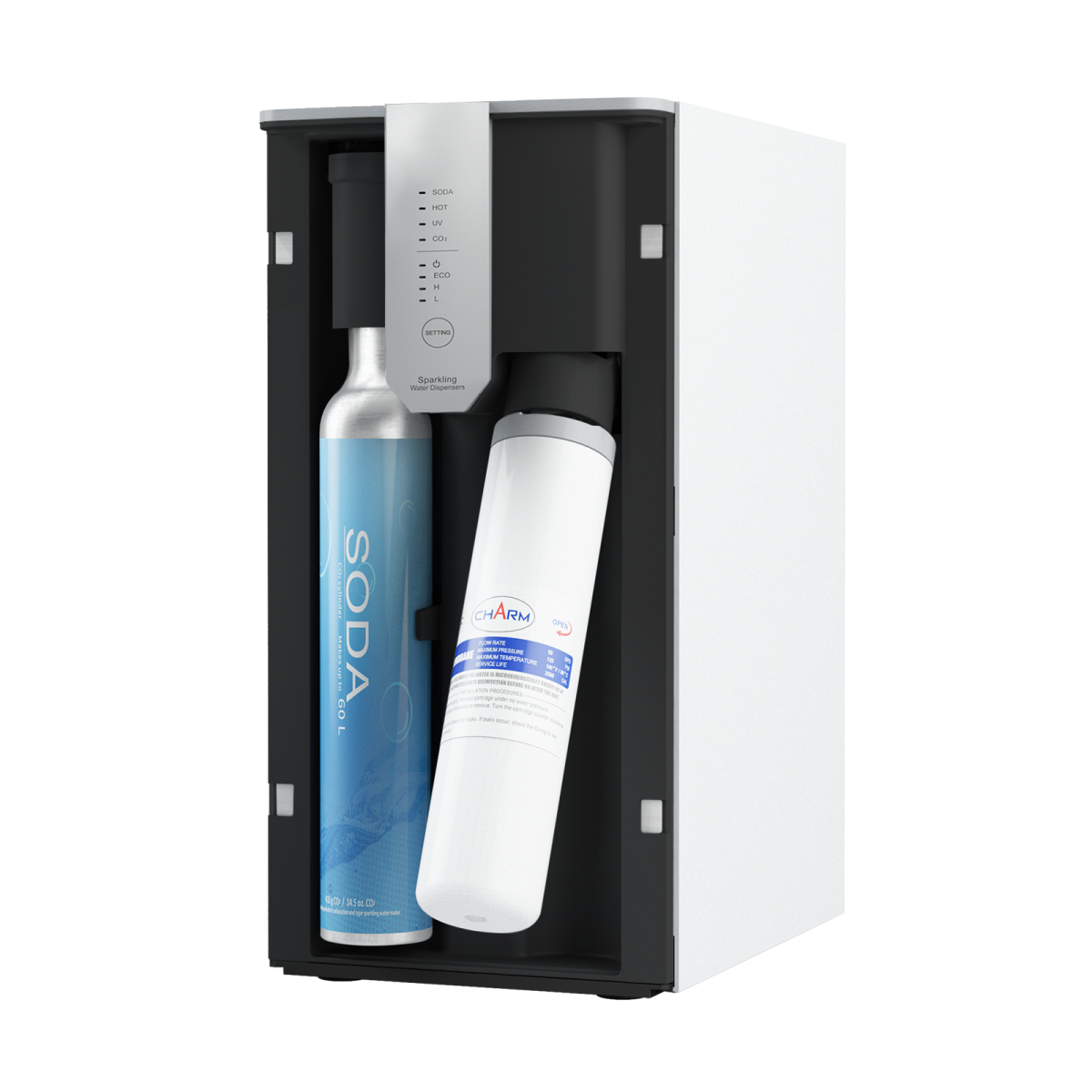

Replaceable Internal COCylinder


Create a neat and tidy counter surface with no external CO2 connection
Liftable (30º) connector makes cylinder change quick and easy

Compatible to the TR21-4(thread),  425g (60L) COcylinder.

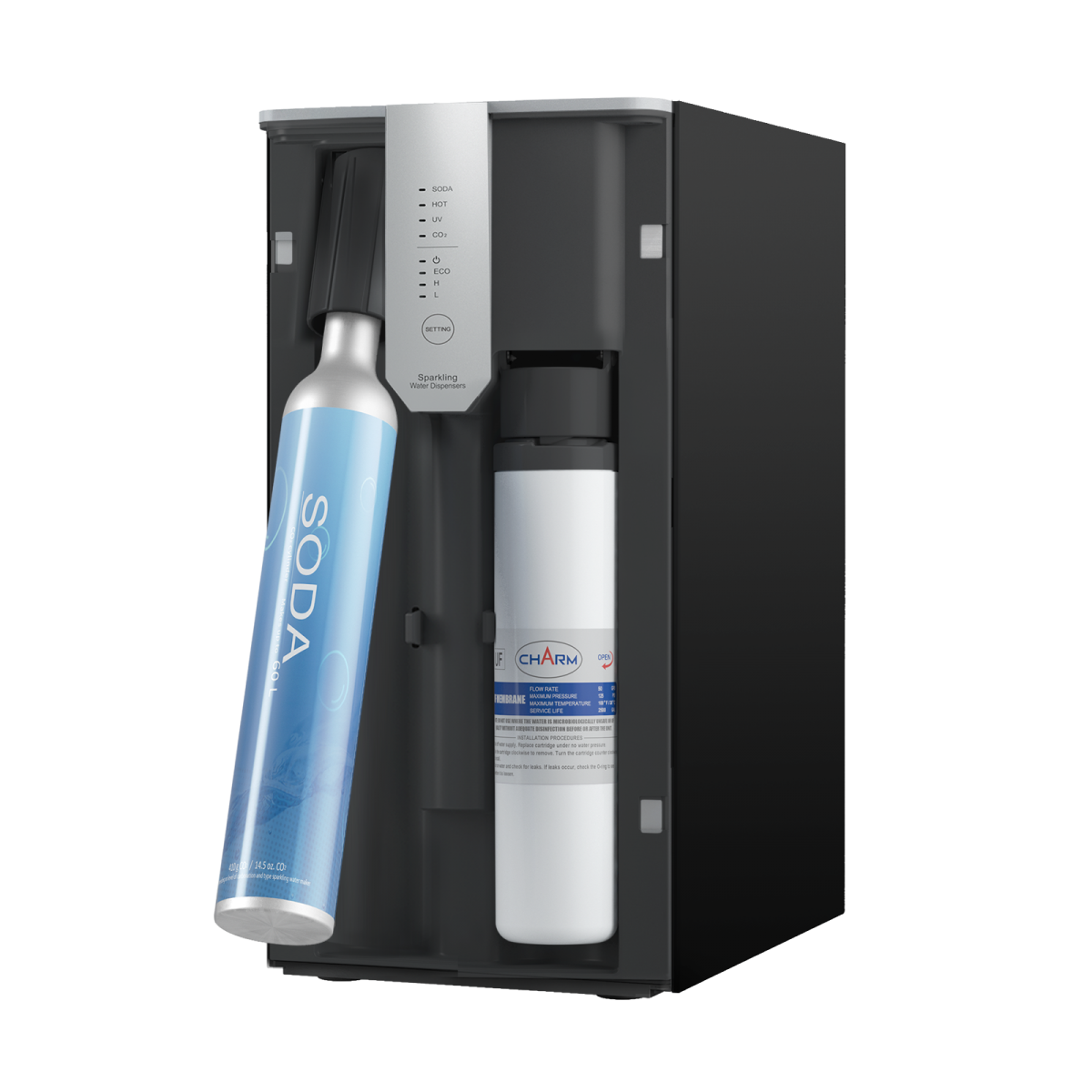

Rotational Replaceable Filter


Replaceable UF(Ultra-filtration) filter installed to the liftable (30o) connector, makes filter change done in less than 10 seconds


Ultra-filtration (UF): Hollow Fiber Technology uses ultra filtration, a membrane filtration process which pushes water through the semi-permeable membrane by standard home water pressure, to block away impurities and bacteria but leave minerals in water.

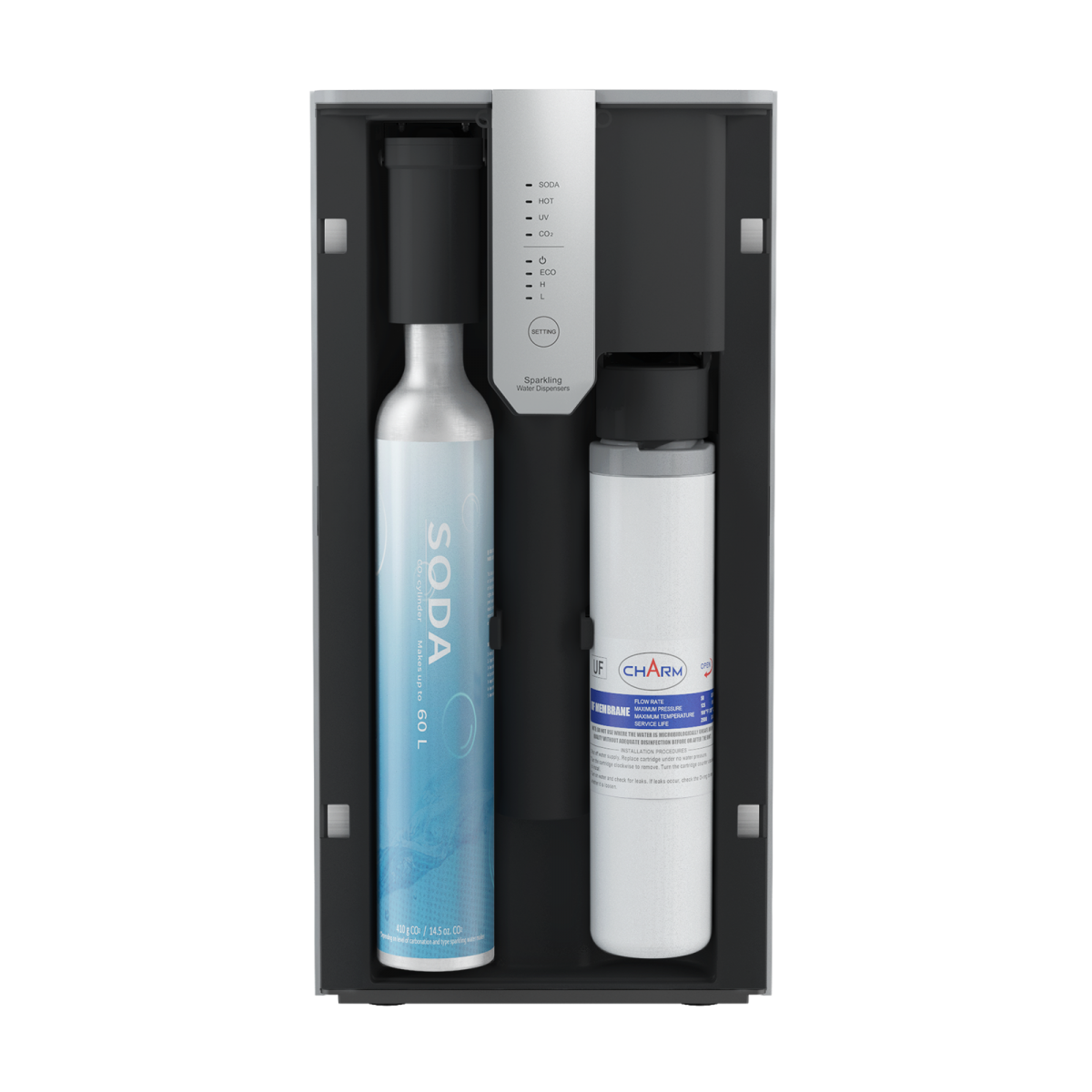

Space saver

Both filter and COcylinder are placed inside of the water dispenser, save the external space.

All additional parts are combined.

Instant-start High Efficiency UV Sterilization System

Instant-start UV sterilization operates while dispensing water. Replaceable high efficiency UV light eliminates 99.9% of germs without affecting the taste of cold / sparkling water due to temperature raise from traditional continuously on UV light.

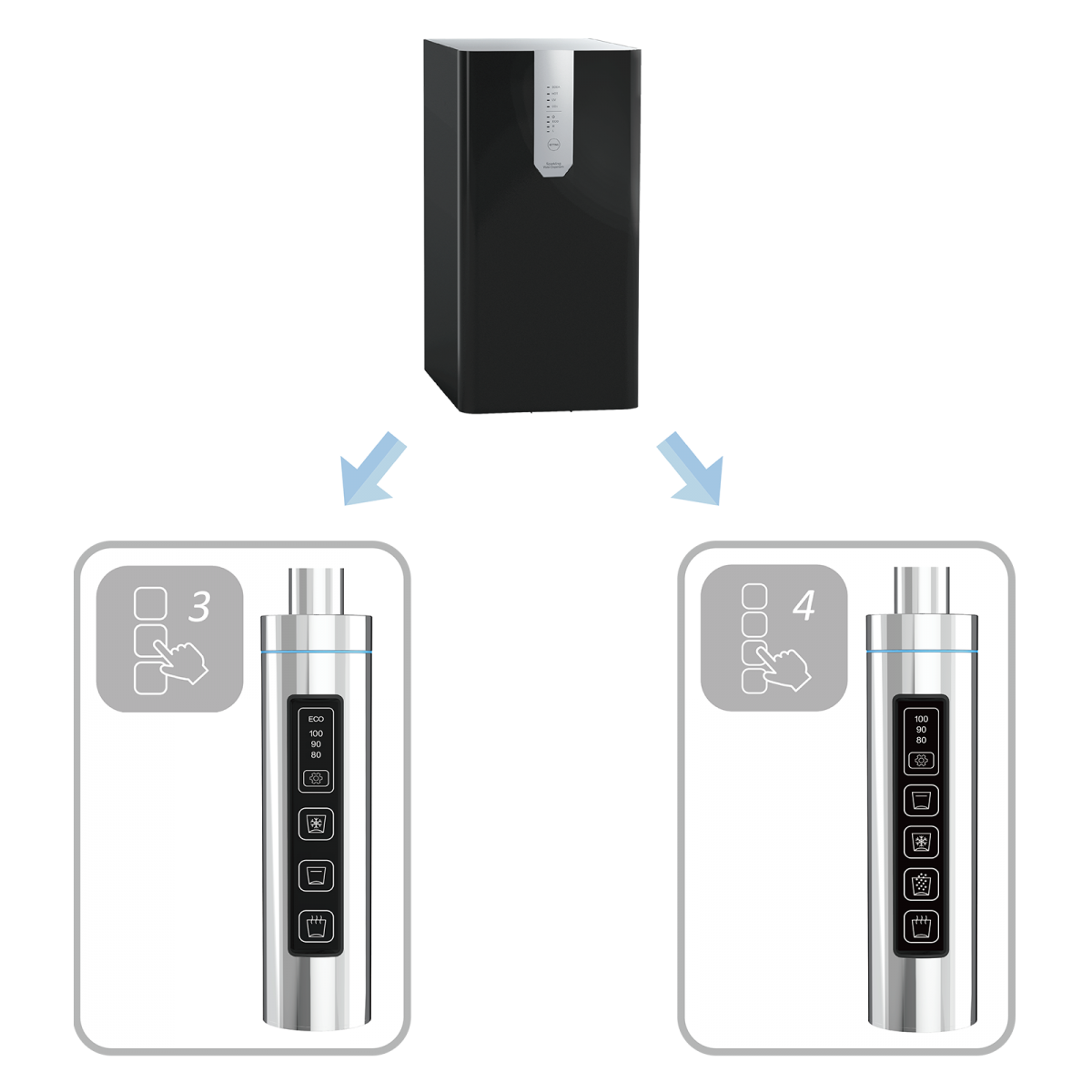

Work for 3 or 4 type water option faucet

4 water option: cold/hot/ambient/sparkling
3 water option: cold/hot/sparkling, cold/ambient/sparkling, cold/hot/ambient

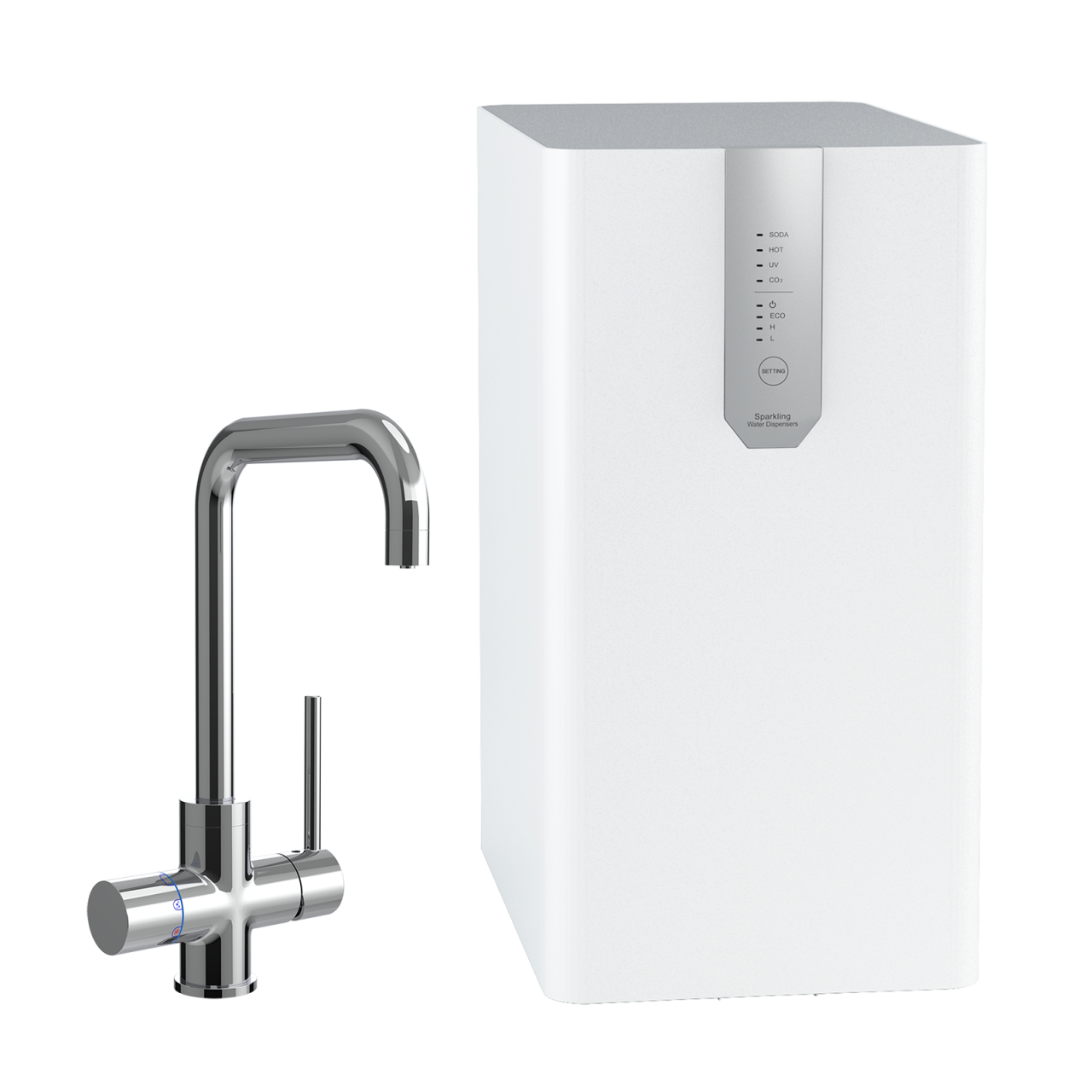

Faucet Selections Based On Your Demands



Faucet models available:











Model M106U
Size 23(W) x 35(D) x 47(H) cm
Color White/Silver, Black/Silver
Water options Cold/Hot/Sparkling, Cold/Ambient/Sparkling
Chilling capacity up to 20 liters per hour
Heating capacity up to 12 liters per hour
Sparkling tank capacity 3.5 liter
Voltage AC 110v / 220v
Power consumption Hot water 1000w / Cold water 100w
Working inlet water pressure 16 to 80 psi
Water/CO2 inlet pipe size 1/4 inch (6.35 mm)
