Under Counter
Back

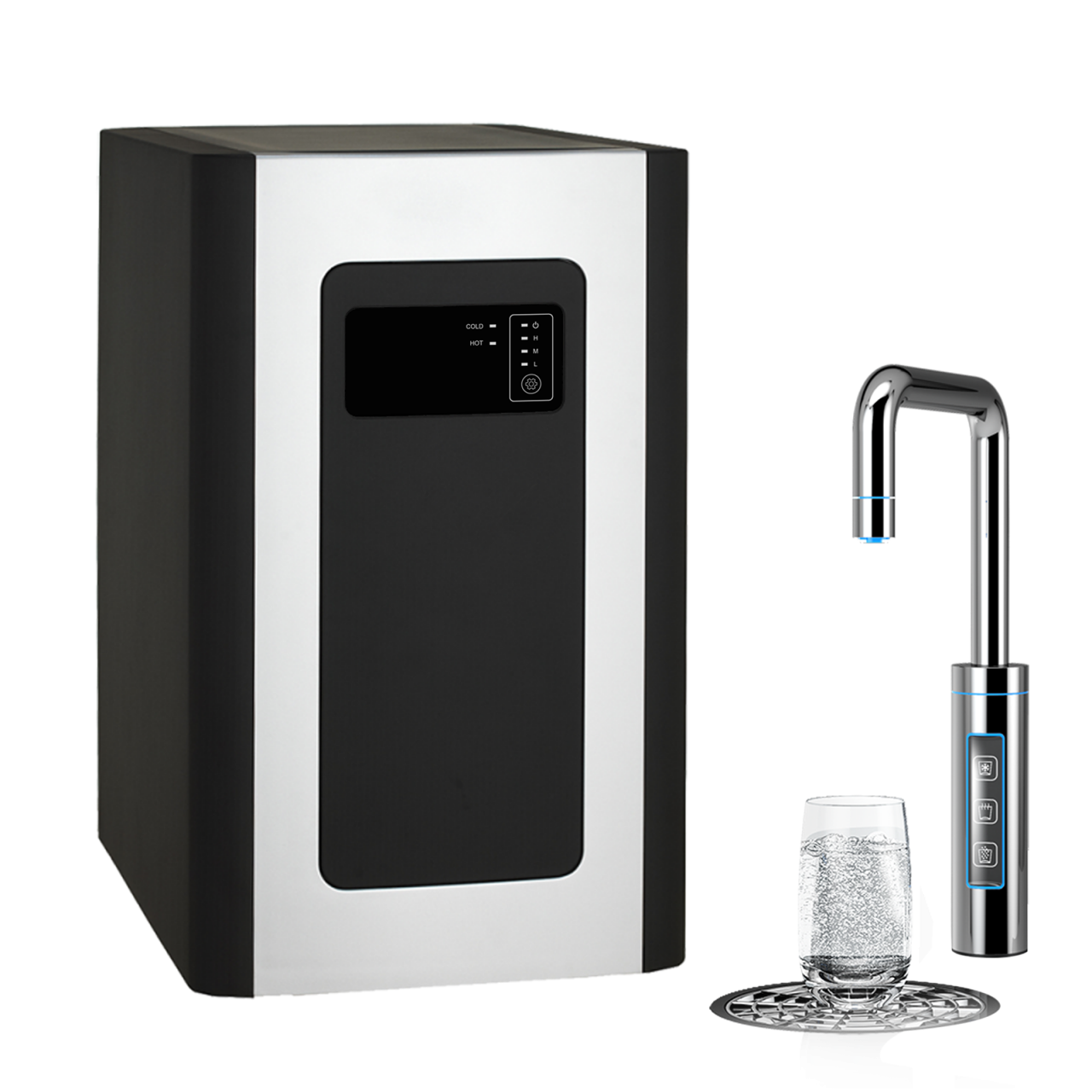

M102UL
Cold water
Sparkling Water
Hot water
ambient water
Safety lock
Energy Saving
Leak Detector
Large Capacity Hot Water Tank
Large hot water tank to deliver 1.2 liter of 95oC hot water after each reheating.
The setting button on the panel is for changing the maximum heating
temperature of hot water according to the altitude of the location to prevent over-boiling.
H: Maximum temperature (98o/96o celsius)
M: -2 degree from maximum temperature
L: -5 degree from maximum temperature
Quick power off button: shuts off the faucet function to prevent water from flowing while cleaning

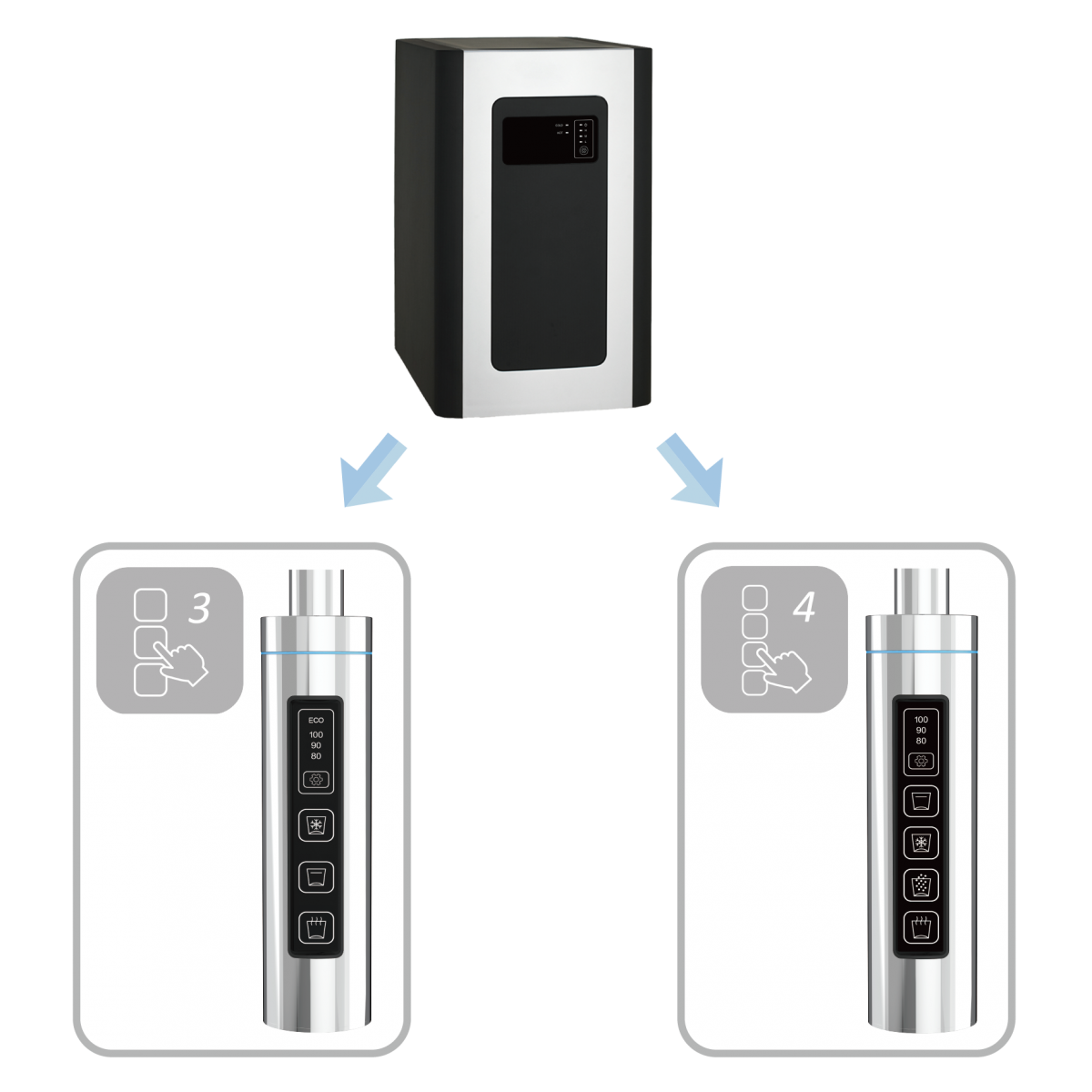

Work for 3 or 4 type water option faucet
4 water option: cold/hot/ambient/sparkling
3 water option: cold/hot/sparkling, cold/ambient/sparkling, cold/hot/ambient
Model | M102UL |
---|---|
Size | 23(W) x 39(D) x 39(H) cm |
Color | White/Silver, Black/Silver |
Water options | Cold/Hot/Sparkling, Cold/Ambient/Sparkling, Cold/Hot/Ambient |
Chilling capacity | up to 20 liters per hour |
Sparkling tank capacity | 3.5 liter |
Hot water capacity | Hot tank 2.3 liter |
Voltage | AC 110v / 220v |
Power consumption | Hot water 1000w / Cold water 100w |
Working inlet water pressure | 16 to 80 psi |
Water/CO2 inlet pipe size | 1/4 inch (6.35 mm) |
